OVERVIEW

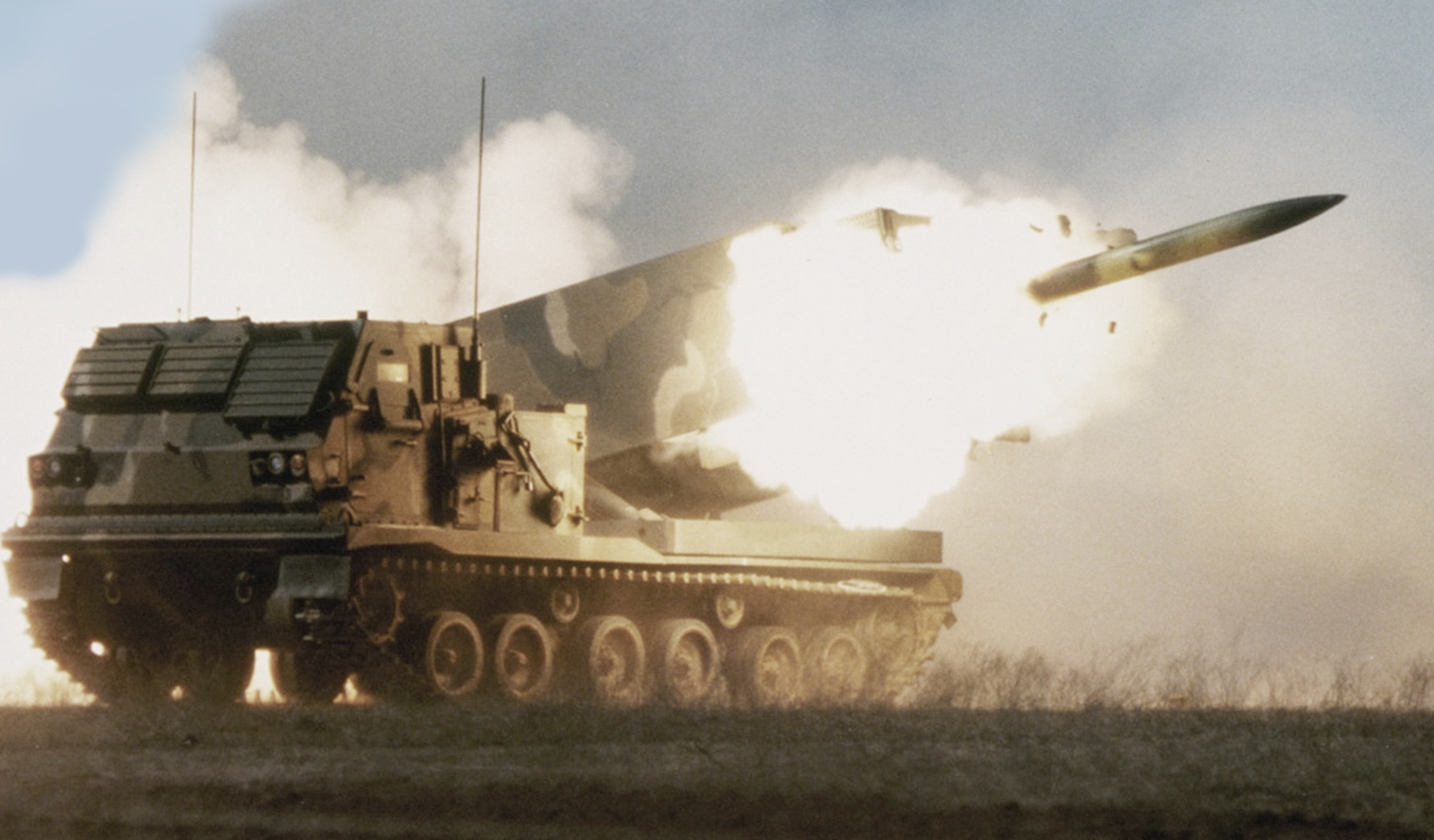

The state-of-the-art M270B1 Multiple Launch Rocket System, firing the M31 Guided Multiple Launch Rocket System (GMLRS) munition, is the mainstay of the British Army’s deep and shaping fires capability.
The system provides pinpoint accuracy, delivering a 200 lb high explosive warhead to its target with over twice the range of other artillery systems used by the British Army. The MLRS also represents the bulk of the Army’s precision fires capability, with the GPS guidance capability integral to the system and highly accurate beyond 70 KM.
The weapon system is manned by a small crew of three Gunners and is mounted on a tracked armoured launcher, which is highly robust and manoeuvrable.
DIMENSIONS
LENGTH
6.85M
WIDTH
2.97M
HEIGH
2.59M
RATE OF FIRE
ROCKETS: 12 ROUNDS/40 SECONDS – MISSILES: 2 ROUNDS/10 SECONDS
The GMLRS fires surface-to-surface rockets and the army tactical missile system (ATACMS). Without leaving the cab, the crew of three (driver, gunner and section chief) can fire up to 12 rockets in less than 60 seconds.
The GMLRS launcher unit is loaded with 12 rockets, packaged in two six-rocket pods. The launcher, which is mounted on a stretched Bradley chassis, is a highly automated self-loading and self-aiming system. It contains a fire control computer that integrates the vehicle and rocket-launching operations.
The rockets can be fired individually or in ripples of two to 12. Accuracy is maintained in all firing modes because the computer re-aims the launcher between rounds.
SPECIFICATIONS
VEHICLE RANGE
640 KM
MAX SPEED
65 KPH
EFFECTIVE RANGE
70 KM
